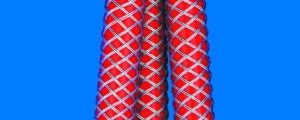

Cable pulling grips for 3 single-cord cables
1e Cable pulling grips for 3 single-cord cables: 3 cable grips are joined in 1 ferrule with eyelet, without thimble.
By means of these cable pulling grips 3 single-cord cables can be efficiently laid in one go.
Filters Sort results
Reset Apply
Designation Klicken Sie auf die Bezeichnung, um zur jeweiligen Detailseite des Produktes zu gelangen. | Cable-diameter | Permissible workload with 3x security load (kN) | Mesh length, dimension L1, approx. (mm) | Total length dimension L2, approx. (mm) | Quantity | Your request |
|---|---|---|---|---|---|---|
| 15 - 20 | 6.8 | 1000 | 1150 | | | |
| 20 - 25 | 6.8 | 1000 | 1150 | | | |
| 25 - 30 | 8.1 | 1000 | 1150 | | | |
| 30 - 40 | 11.7 | 1250 | 1400 | | | |
| 40 - 50 | 16.0 | 1250 | 1400 | | | |
| 50 - 60 | 16.0 | 1500 | 1650 | | |
