Cable mounting grip with 1 side eyelet, without thimble

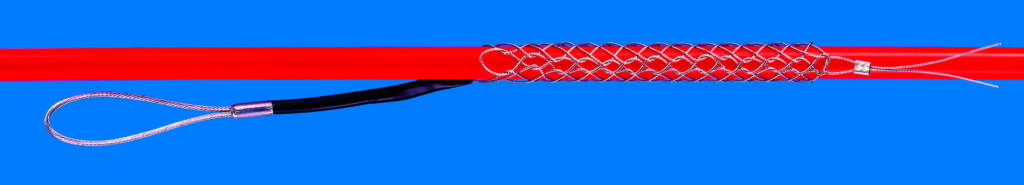

3c Cable mounting grip with 1 side eyelet, without thimble, longitudinally parted, including tying cord.
Longitudinally parted cable mounting grips can be used for braidingin cables or hoses very easily after they have already been laid and at any desired point of the outer cable jacket. The advantage of these grips is that cables that have already been connected do not have to be disconnected in order to attach the traction-relieving device.
Filters Sort results
Reset Apply
Designation Klicken Sie auf die Bezeichnung, um zur jeweiligen Detailseite des Produktes zu gelangen. | Cable-diameter | Permissible workload with 3x security load (kN) | Mesh length, dimension L1, approx. (mm) | Total length dimension L2, approx. (mm) | Quantity | Your request |
|---|---|---|---|---|---|---|
| 4 - 6 | 0.6 | 100 | 275 | | | |
| 7 - 9 | 1.1 | 120 | 290 | | | |
| 9 - 12 | 1.3 | 135 | 340 | | | |
| 12 - 15 | 2.1 | 180 | 390 | | | |
| 15 - 19 | 2.6 | 220 | 450 | | | |
| 19 - 25 | 2.6 | 275 | 510 | | | |
| 25 - 30 | 4.0 | 350 | 610 | | | |
| 30 - 40 | 5.8 | 370 | 660 | | | |
| 40 - 50 | 8.0 | 490 | 800 | | | |
| 50 - 60 | 8.0 | 500 | 810 | | | |
| 60 - 70 | 10.6 | 520 | 860 | | | |
| 70 - 90 | 13.9 | 580 | 950 | | | |
| 90 - 110 | 17.4 | 650 | 1130 | | |
