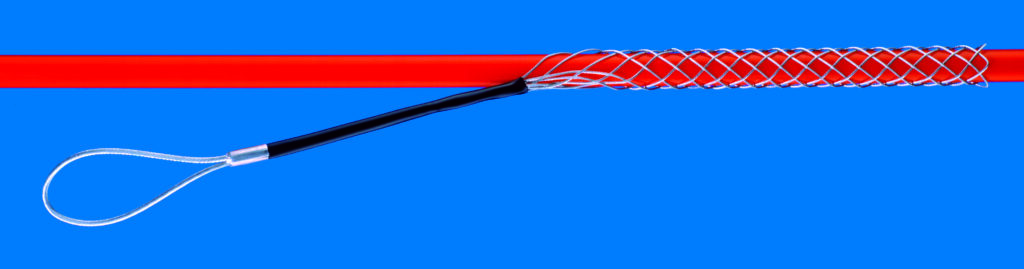

Cable mounting grips with 1 side eyelet, without thimble
3a Cable mounting grips with 1 side eyelet, without thimble.
Cable mounting grips are used for protective suspension of cable or hoses in industrial systems, machinery, lifts, vehicles, cable ducts, etc. Localized stresses as might occur with suspension by clamps or saddles are avoided with suspension by cable mounting grips as the mesh distributes the arising forces to a larger area.
Filters Sort results
Reset Apply
Designation Klicken Sie auf die Bezeichnung, um zur jeweiligen Detailseite des Produktes zu gelangen. | Cable-diameter | Permissible workload with 3x security load (kN) | Mesh length, dimension L1, approx. (mm) | Total length dimension L2, approx. (mm) | Quantity | Your request |
|---|---|---|---|---|---|---|
| 4 - 6 | 0.6 | 100 | 275 | | | |
| 7 - 9 | 1.1 | 120 | 290 | | | |
| 9 - 12 | 1.3 | 135 | 340 | | | |
| 12 - 15 | 2.1 | 180 | 390 | | | |
| 15 - 19 | 2.6 | 220 | 450 | | | |
| 19 - 25 | 2.6 | 275 | 510 | | | |
| 25 - 30 | 4.0 | 350 | 610 | | | |
| 30 - 40 | 5.8 | 370 | 660 | | | |
| 40 - 50 | 8.0 | 490 | 800 | | | |
| 50 - 60 | 8.0 | 500 | 810 | | | |
| 60 - 70 | 10.6 | 520 | 860 | | | |
| 70 - 90 | 13.9 | 580 | 950 | | | |
| 90 - 110 | 17.4 | 650 | 1130 | | |
