Cable mounting grips with 2 side eyelets, without thimble

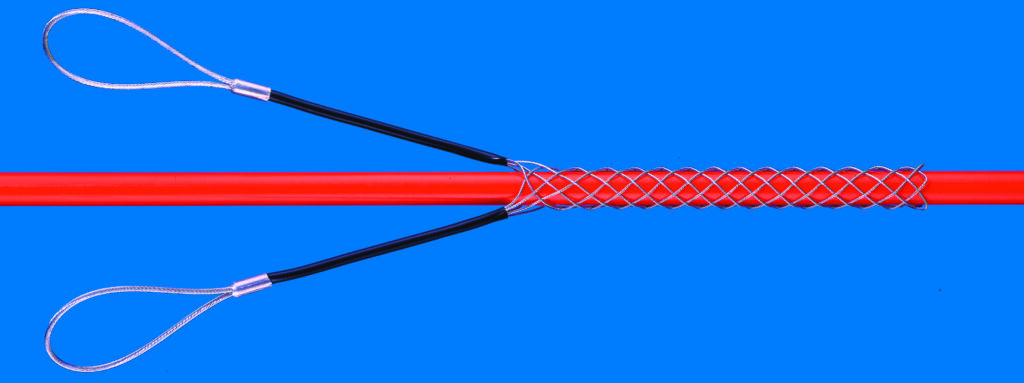

3b Cable mounting grips with 2 side eyelets, without thimble.
This type of cable mounting grips in general complies with the version with only one side eyelet (see 3a), however it is equipped with two side eyelets, that make it possible for a cable to be suspended exactly vertically.
Filters Sort results
Reset Apply
Designation Klicken Sie auf die Bezeichnung, um zur jeweiligen Detailseite des Produktes zu gelangen. | Cable-diameter | Permissible workload with 3x security load (kN) | Mesh length, dimension L1, approx. (mm) | Total length dimension L2, approx. (mm) | Quantity | Your request |
|---|---|---|---|---|---|---|
| 4 - 6 | 0.6 | 100 | 285 | | | |
| 7 - 9 | 1.1 | 120 | 300 | | | |
| 9 - 12 | 1.3 | 135 | 350 | | | |
| 12 - 15 | 2.1 | 180 | 400 | | | |
| 15 - 19 | 2.6 | 220 | 450 | | | |
| 19 - 25 | 2.6 | 275 | 530 | | | |
| 25 - 30 | 4.0 | 350 | 630 | | | |
| 30 - 40 | 5.8 | 370 | 680 | | | |
| 40 - 50 | 8.0 | 490 | 800 | | | |
| 50 - 60 | 8.0 | 500 | 840 | | | |
| 60 - 70 | 10.6 | 520 | 890 | | | |
| 70 - 90 | 13.9 | 580 | 900 | | | |
| 90 - 110 | 17.4 | 650 | 1160 | | |
