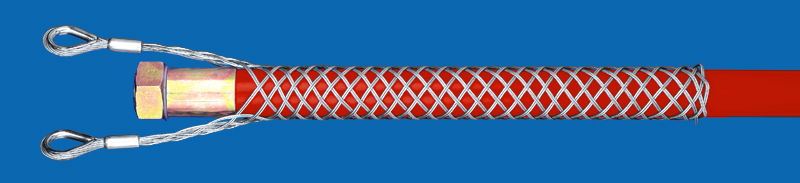

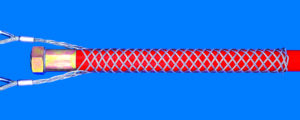

Hose securing grips with 2 side eyelets
3g Hose securing grips with 2 side eyelets and 2 integrated thimbles (DIN).
One cannot rule out the possibility that high-pressure hoses become loosened from their connection fittings and cause large damage and severe injury due to the high amount of abruptly released energy. Hose securing grips prevent such dangers.
Filters Sort results
Reset Apply
Designation Klicken Sie auf die Bezeichnung, um zur jeweiligen Detailseite des Produktes zu gelangen. | Cable-diameter | Permissible workload with 3x security load (kN) | Mesh length, dimension L1, approx. (mm) | Total length dimension L2, approx. (mm) | Quantity | Your request |
|---|---|---|---|---|---|---|
| 6 - 10 | 2.2 | 600 | 740 | | | |
| 10 - 15 | 3.4 | 600 | 740 | | | |
| 15 - 20 | 6.8 | 600 | 780 | | | |
| 20 - 25 | 6.8 | 600 | 800 | | | |
| 25 - 30 | 8.1 | 600 | 800 | | | |
| 30 - 40 | 11.7 | 600 | 820 | | | |
| 40 - 50 | 16.0 | 600 | 850 | | | |
| 50 - 60 | 16.0 | 600 | 880 | | | |
| 60 - 70 | 21.3 | 600 | 930 | | | |
| 70 - 90 | 27.9 | 600 | 960 | | | |
| 90 - 110 | 34.9 | 600 | 1000 | | |
