Cable mounting grips for wind power plants

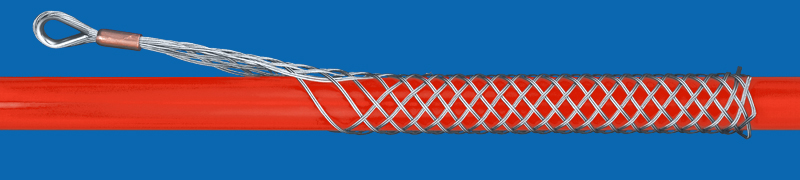

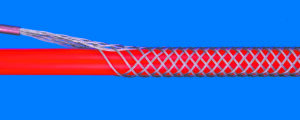

3e Cable mounting grips for wind power plants with 1 side eyelet and 1 integrated thimble (DIN).
Energy- and control cable in wind power plants are submitted to very high stresses. In order to guarantee long and failure-free life cycles of the plants, the cables must be mounted within the masts in traction-relieving and slip-proof manner. Cable mounting grips for wind power plants are especially suitable for these purposes. As the majority of the "wind mills" is erected in coastal areas we use stainless steel Bowden line strands - DIN 1.4401 for the mesh of the MW type grips.
Filters Sort results
Reset Apply
Designation Klicken Sie auf die Bezeichnung, um zur jeweiligen Detailseite des Produktes zu gelangen. | Cable-diameter | Permissible workload with 3x security load (kN) | Mesh length, dimension L1, approx. (mm) | Total length dimension L2, approx. (mm) | Quantity | Your request |
|---|---|---|---|---|---|---|
| 8 - 10 | 2.2 | 500 | 650 | | | |
| 10 - 15 | 3.4 | 500 | 670 | | | |
| 15 - 20 | 4.3 | 500 | 720 | | | |
| 20 - 25 | 6.8 | 500 | 750 | | | |
| 25 - 30 | 8.1 | 500 | 750 | | | |
| 30 - 40 | 11.7 | 500 | 800 | | | |
| 40 - 50 | 16.0 | 800 | 1000 | | | |
| 50 - 60 | 16.0 | 800 | 1000 | | | |
| 60 - 70 | 21.0 | 800 | 1200 | | | |
| 70 - 90 | 21.0 | 800 | 1200 | | | |
| 90 - 110 | 26.7 | 800 | 1200 | | |
